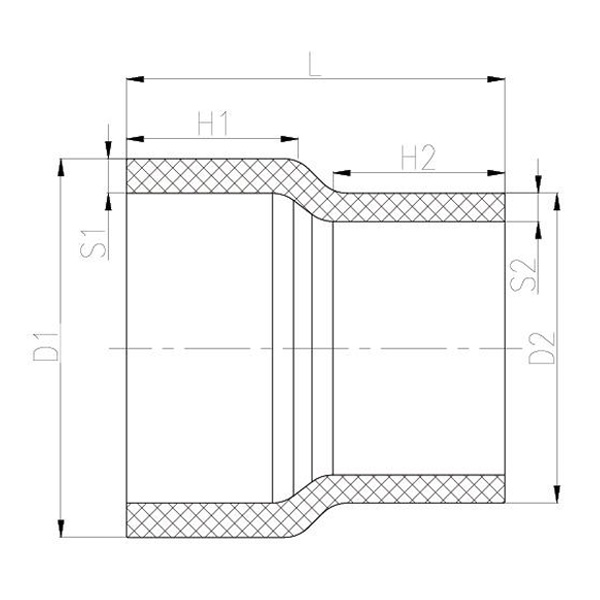

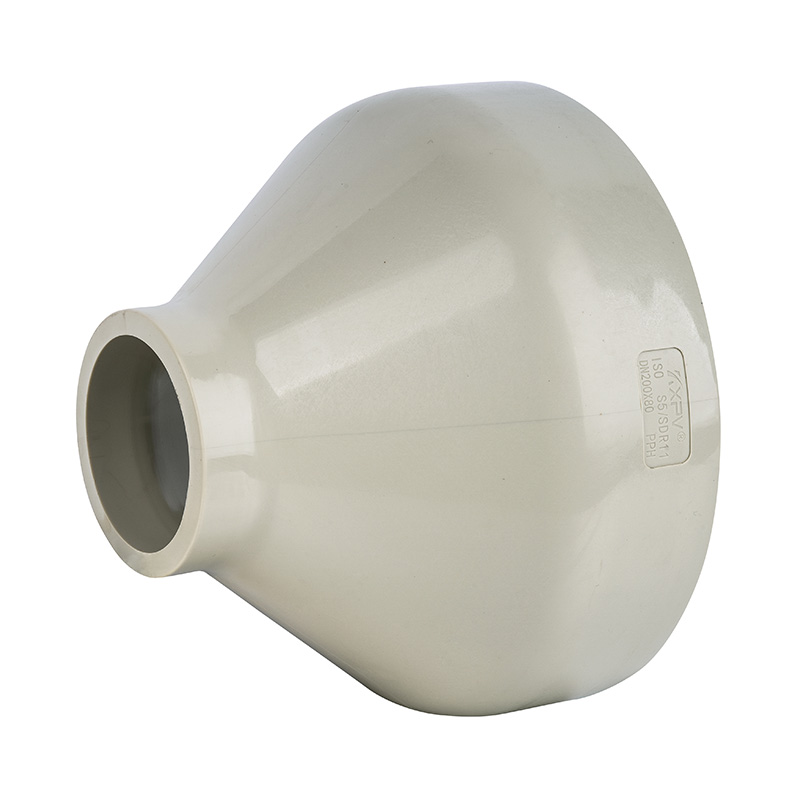

| Dimensiunea conexiunii principale a reductorului PPH |
| DN | PN | D mm | D1 mm | S mm | L mm | S1 mm |
| DN125 × DN65 | 10 | 140 | 75 | 12.8 | 119 | 6.9 |
| DN125 × DN80 | 10 | 140 | 90 | 12.8 | 110 | 82 |
| DN125 × DN100 | 10 | 140 | 110 | 12.8 | 110 | 10 |
| DN150 × DN80 | 10 | 160 | 90 | 14.6 | 109 | 82 |
| DN150 × DN100 | 10 | 160 | 110 | 14.6 | 107 | 10 |
| DN150 × DN125 | 10 | 160 | 140 | 14.6 | 105 | 12.7 |
| DN200 × DN125 | 10 | 225 | 140 | 205 | 135 | 12.8 |
| DN200 × DN150 | 10 | 225 | 160 | 20.5 | 136 | 14.6 |
| DN250 × DN200 | 10 | 280 | 225 | 26.7 | 206 | 20.5 |
| DN300 × DN200 | 10 | 315 | 225 | 28.6 | 208 | 20.5 |
| DN300 × DN250 | 10 | 315 | 280 | 28.7 | 222 | 26.7 |
